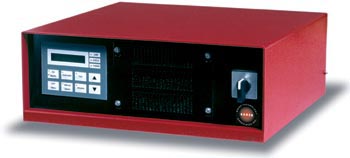

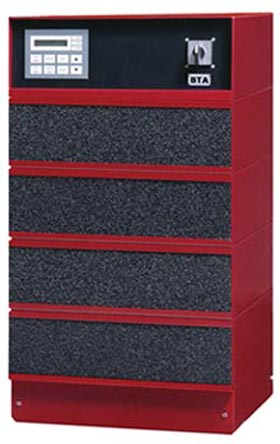

Single Frequency Pulse Plating Rectifiers

Single frequency (“square waveform”) pulse reverse rectifiers have been used for 20+ years in the printed circuit board industry to improve plating speed and throwing power. BTA has typical single frequency PPR rectifiers able to meet the needs of simpler pulse reverse plating applications.

  IGBT Technology

  Operation is current or voltage mode

  Fast polarity switching

  Modular design

  Water or air cooled configurations

  Low operating costs due to high efficiency and power factor

  Flexible local control user interface for setting all pulse parameters

  Computer interface for automatic control and batch programming

Download Data Sheet
